The Best Partner for Manufacturers
Electronics & Semiconductors
Our filters are able to serve even those with very strict LPC standards
Food & Beverage
Our filters are certified for use in food and beverage industries
Pharmaceutical
Our filters withstand even the harsh conditions of sterile and strict pharmaceutical processes
PII filters Satisfied Customers over the years
Here are some of our growing list of satisfied customers:
- Toshiba Information Equipment (Phils.), Inc.
- Nidec Precision Philippines Corp.
- Optodev, Inc.
- Asia Brewery Inc.
- Pepsi-Cola Products Philippines, Inc.
- Liwayway Marketing Corporation
- Singapore Pharmawealth and Lifesciences, Inc.
- Sydenham Laboratories, Inc.
- Belman Laboratories
Wide Range of Liquid Filtration Products

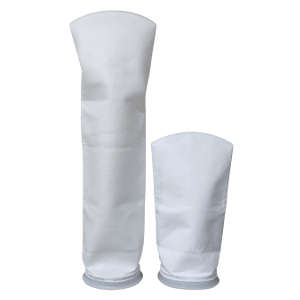

Bag filter
Removes solids from liquids by using surface filtration
Micron ratings from 1 to more than 100 microns
Available in 4 sizes:
7″ x 16.5″, 7″ x 32″, 4″ x 9″, and 4″ x 15″

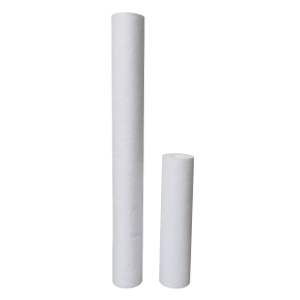

Meltblown filter
Other names: sediment filter, spun type, depth type
Removes solids from liquids by using surface and depth filtration
Micron ratings from 0.5 to more than 100 microns
Available in 10, 20, 30, and 40 inches length and outer diameter of 2.5 and 4.5 inches

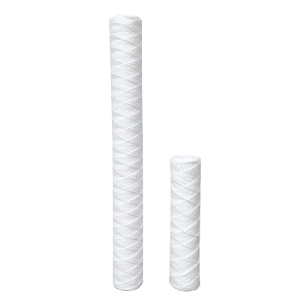

Stringwound filter
Other names: sediment filter, wound type, spun wound
Removes solids from liquids by using surface and depth filtration
Micron ratings from 0.5 to more than 100 microns
Available in 10, 20, 30, and 40 inches length

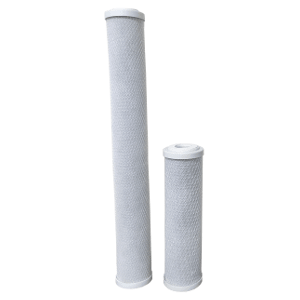

Activated Carbon Block Filter
Other names: Compressed activated carbon, CTO filter
Removes chlorine and organics in liquid that imparts color, taste, and odor by adsorption
Normally comes in 5 microns
Available in 10, 20, 30, and 40 inches length and outer diameter of 2.5 and 4.5 inches

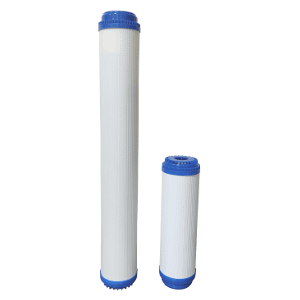

Granulated Activated Carbon Filter
Other names: Activated carbon filter, GAC filter
Removes chlorine and organics in liquid that imparts color, taste, and odor by adsorption
Normally comes in 5 microns
Available in 10, 20, 30, and 40 inches length

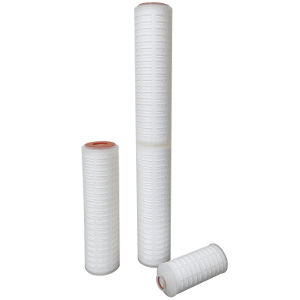

Pleated filter
Material: Membrane and media
Types: Hydrophilic/ Hydrophobic
Removes solids from liquids or air, water vapor from air, and even bacteria and viruses depending on filter material and micron rating. Has high surface area and thus permits larger flow rates and have longer life span
Micron ratings from 0.04 to 99 microns
Available in 10, 20, 30, and 40 inches length

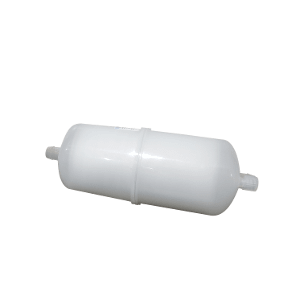

Capsule filter
Material: Membrane and media
Types: Hydrophilic/ Hydrophobic
Removes solids from liquids or air, water vapor from air, and even bacteria and some viruses depending on filter material and micron rating. Normally used for small scale sterile applications.
Micron ratings from 0.04 to 99 microns
Available in different surface area and sizes
Ultrafilter
Removes solids from liquids and effectively removes bacteria and some viruses without the use of high pressure
Micron ratings from 0.04 to 99 microns
Available in different surface area and sizes
Reverse Osmosis Membrane
Removes solids, bacteria and viruses, and reduces dissolved molecules, chemicals, heavy metals, and radioactive materials in water but needs high feed pressure to work
Typical micron rating is at 0.0001 micron
Typical industrial sizes are 4 and 8 inches diameter with 40″ length
Experience Process Innovations, Inc. today
Different Housings for Different Needs

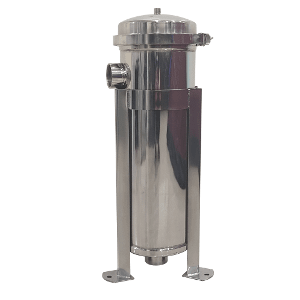

Bag Filter Housing – Stainless
Compatible with most bag filter types with plastic rings. Comes in single or multiple in one housing
Choice between SS304 or SS316 material
For 7″ x 16.5″, 7″ x 32″, 4″ x 9″, and 4″ x 15″ sizes. Has many choices for connection type

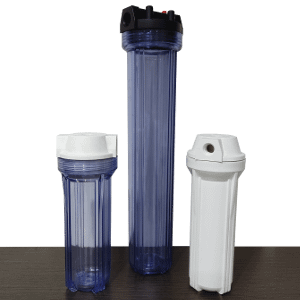

Single Filter Housing (slim type) – Plastic
Compatible with all slim type filter cartridges with Double Open End (DOE) connection
Choice between transparent and opaque housing
For 10, 20, 30, and 40 inches filter length. NPTF connections of 1/2, 3/4, or 1 inch

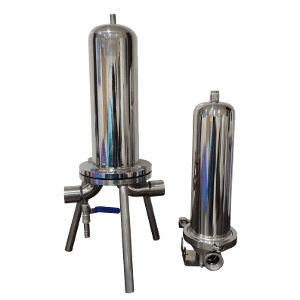

Single Filter Housing (slim type) – Stainless
Types: Sanitary/ Industrial
Compatible with all slim type filter cartridges and has choices for adapter types – DOE, 222 SOE, 226 SOE, and more
Choice between SS304 or SS316 material, and industrial or sanitary
For 5, 10, 20, 30, and 40 inches filter length. Has many choices for connection type

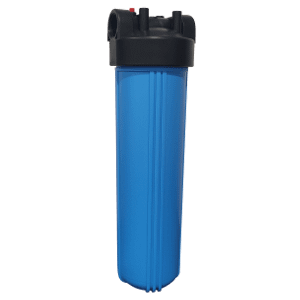

Single Filter Housing (BB type) – Plastic
Compatible with all 4 or 4.5 inches diameter filter cartridge types with Double Open End (DOE) connection
Choice between transparent and opaque housing
For 10, 20, 30, and 40 inches filter length. NPTF connections of 1 up to 2 inches

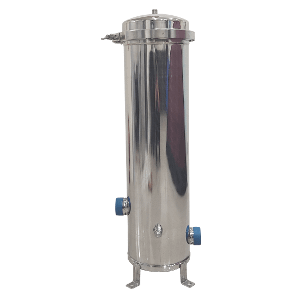

Multi Filter Housing – Stainless
Compatible for slim type cartridges and designed for 3 or more filters in one housing. Has choices for adapter types – DOE, 222 SOE, and 226 SOE
Choice between SS304 or SS316 material
For 20, 30, and 40 inches filter length. Connection is normally flange type
Filter Design References

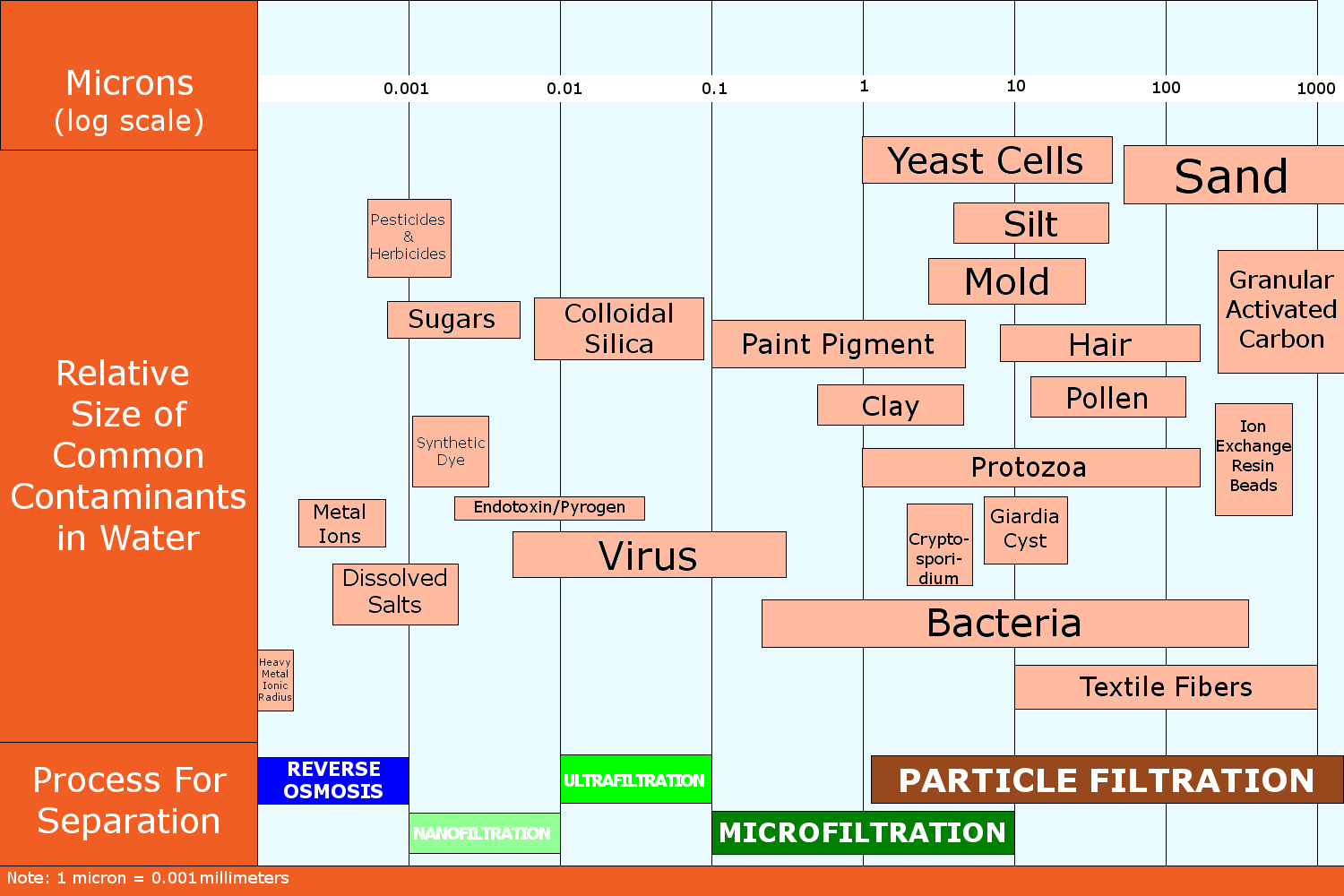

Filtration Spectrum of common water contaminants
Particle Size Table
| Particle | Particle Size (microns) |
|---|---|
| Anthrax | 1 - 5 |
| Antiperspirant | 6 - 10 |
| Asbestos | 0.7 - 90 |
| Atmospheric Dust | 0.001 - 40 |
| Auto and Car Emission | 1 - 150 |
| Bacteria | 0.3 - 60 |
| Beach Sand | 100 - 10000 |
| Bone Dust | 3 - 300 |
| Bromine | 0.1 - 0.7 |
| Burning Wood | 0.2 - 3 |
| Calcium Zinc Dust | 0.7 - 20 |
| Carbon Black Dust | 0.2 - 10 |
| Carbon Dioxide | 0.00065 |
| Cayenne Pepper | 15 - 1000 |
| Cement Dust | 3 - 100 |
| Clay, coarse | 2 - 4 |
| Clay, fine | 0.5 - 1 |
| Clay, medium | 1 - 2 |
| Coal Dust | 1 - 100 |
| Coal Flue Gas | 0.08 - 0.2 |
| Coffee | 5 - 400 |
| Combustion | 0.01 - 0.1 |
| Combustion-related - motor vehicles, wood burning, open burning, industrial processes | up to 2.5 |
| Copier Toner | 0.5 - 15 |
| Corn Starch | 0.1 - 10 |
| Dot (.) | 615 |
| Dust Mites | 100 - 300 |
| Eye of a Needle | 1230 |
| Face Powder | 0.1 - 30 |
| Fertilizer | 10 - 1000 |
| Fiberglass Insulation | 1 - 1000 |
| Fly Ash | 1 - 1000 |
| Gelatin | 5 - 90 |
| Ginger | 25 - 40 |
| Glass Wool | 1000 |
| Grain Dusts | 5 - 1000 |
| Gravel, coarse (0.6 - 1.3 inches) | 15000 - 30000 |
| Gravel, fine (0.16 inch) | 4000 |
| Gravel, medium (0.3 inch) | 8000 |
| Gravel, very coarse (1.3 - 2.5 inches) | 30000 - 65000 |
| Gravel, very fine (0.08 inch) | 2000 |
| Ground Limestone | 10 - 1000 |
| Hair | 5 - 200 |
| Household dust | 0.05 - 100 |
| Human Hair | 40 - 300 |
| Human Sneeze | 10 - 100 |
| Humidifier | 0.9 - 3 |
| Insecticide Dusts | 0.5 - 10 |
| Iron Dust | 4 - 20 |
| Lead Dust | 0.1 - 0.7 |
| Lead, battery and lead powder manufacturing | 12 - 22 |
| Lead, solder radiator manufacturing - mean value | 1.3 |
| Liquid Droplets | 0.5 - 5 |
| Metallurgical Dust | 0.1 - 1000 |
| Metallurgical Fumes | 0.1 - 1000 |
| Milled Flour, Milled Corn | 1 - 100 |
| Mist | 70 - 350 |
| Mold | 3 - 12 |
| Mold Spores | 10 - 30 |
| Mustard | 6 - 10 |
| Oil Smoke | 0.03 - 1 |
| One inch | 25400 |
| Oxygen | 0.0005 |
| Paint Pigments | 0.1 - 5 |
| Pesticides & Herbicides | 0.001 |
| Pet Dander | 0.5 - 100 |
| Pollen | 10 - 1000 |
| Radioactive Fallout | 0.1 - 10 |
| Red Blood Cells | 5 - 10 |
| Rosin Smoke | 0.01 - 1 |
| Sand, coarse (0.02 inch) | 500 |
| Sand, fine (0.005 inch) | 125 |
| Sand, medium (0.01 inch) | 250 |
| Sand, very coarse (0.02 inch) | 500 |
| Sand, very fine (0.0025 inch) | 62 |
| Saw Dust | 30 - 600 |
| Sea Salt | 0.035 - 0.5 |
| Silt, coarse (0.0015) | 37 |
| Silt, fine | 8 - 13 |
| Silt, medium (0.0006 - 0.0012 inche) | 16 - 30 |
| Silt, very fine | 4 - 8 |
| Skin flakes | 0.5 - 10 |
| Smoke from Natural Materials | 0.01 - 0.1 |
| Smoke from Synthetic Materials | 1 - 50 |
| Smoldering or Flaming Cooking Oil | 0.03 - 0.9 |
| Spanish Moss Pollen | 150 - 750 |
| Spider web | 2 - 3 |
| Spores from plants | 3 - 100 |
| Starches | 3 - 100 |
| Sugars | 0.0008 - 0.005 |
| Talcum Dust | 0.5 - 50 |
| Tea Dust | 8 - 300 |
| Textile Dust | 6 - 20 |
| Textile Fibers | 10 - 1000 |
| Tobacco Smoke | 0.01 - 4 |
| Typical Atmospheric Dust | 0.001 to 30 |
| Viruses | 0.005 - 0.3 |
| Yeast Cells | 1 - 50 |
Engineering ToolBox, (2005). Particle Sizes. [online] Available at: https://www.engineeringtoolbox.com/particle-sizes-d_934.html [Accessed 13 04 2021].
Services
Facility Water Filtration Design, Supply & Installation
Water for utility use sourced from deep well or treated water? We can give an optimal design for you.
Drinking Water Design, Supply & Installation
Hassle and high costs of drinking water? You can have your own drinking water at your office or manufacturing area.
Critical Process Filtration Design, Supply & Installation
Need to maintain the highest quality water for mixing or washing your final products? We will give you a cost effective solution.
Water Recycling System Design, Supply & Installation
Too much wasted water? Use innovative design to help reuse water and help our environment which also helps in cutting down water costs.
